Olympus LS-14 Linear PCM Recorder - DISCONTINUED


As of September 23th, 2016 the Olympus LS-14 is discontinued and no longer available.

Please see the new Olympus LS-P2
that replaces it by clicking here.

The Olympus LS-14 Linear PCM Recorder offers amazing quality in a small package because of the Tresmic three microphone system. Add in the metronome and tuning feature and this device is quite simply, the musician's new best friend. But you might be surprised to find that it is also a great tool for those of you doing video recording.

Without a doubt, Olympus's new Tresmic three microphone system delivers exceptional sound over a wide frequency range. It features two Stereo Directional microphones and a Center Omni Directional microphone. This allows you to record lower bass ranges with arresting clarity. Should you need an external mic option, there is a 3.5mm Microphone Jack along with a 3.5mm Line In Jack. It also features a 3.5mm Earphone Jack.

There is a built-in metronome and you have the ability to tune your instruments using the built in tuner.

Other features are the over overdubbing, pre-recording, and a PC Interface port for connecting over USB to your computer.

Use the 99 point indexer function to quickly mark and return to key recording points for later review.

The Smart Mode easily detects the best recording level automatically. But if your an audio geek the Manual mode gives your full control. There's also a Quick Record Mode. Easily select between them to suit your needs.

The extra-high quality linear PCM recording of the Olympus LS-14 utilizes a quantization bit rate of up to 24 bit. The sampling frequency goes up to 96 kHz. What does that mean? It means your recording will be of a higher quality than CD-quality sound.

The LS-14 comes with 4GB of internal memory plus it features the ability to expand to up to 32GB via the SDSDHC slot.

Easily attach it to a microphone stand or set it on the table with the included clip which screws into the tripod hole on the back of the unit.

Safely transport the LS-14 with the included case.

Click here for the full specs.



HTH Engineering, Inc. supports your purchase of the LS-14 with friendly, expert "concierge" technical support via telephone and/or GotoMeeting™ for as long as you own the equipment.


Olympus LS-14 Features and Benefits

imageTresmic Three Microphone System

The Stereo Directional microphones and Center Omni Directional microphone capture amazingly clear sounds from lows to highs.


Multiple Line In and Data Connections

  • Line In
  • External Microphone
  • Ear Jack
  • Remote Control Jack
  • USB
  • SDSDHC slot

Includes Mic Stand Clip


Easily set up on the table or attach to a microphone stand.




Learn more about the HTH Engineering difference.


Includes Free UNLIMITED technical support from our expert technicians when you purchase an Olympus LS-14 from us.


1-Year Warranty with exclusive new replacement unit guarantee within the first 90 days.


Better Business Bureau A+ rated since 2001.


How to order

We have Olympus LS-14s ready to be shipped right away. Call us at (866) 254-0714 or order online.

Olympus LS-14 Professional Linear PCM Recorder

Model #55200


In Stock for Immediate Delivery

(same day shipping for all orders placed
by 3:30 p.m. EDT)

Call (866) 254-0714 to Get Your Custom Quote

Package Includes:

  • LS-14 Recorder
  • Warranty Card
  • Instructional Manual
  • AA alkaline battery ×2
  • USB cable
  • Carrying Case
  • Stand Clip


  • Exclusive HTH Engineering "Concierge" Turn-Key Tech Support and Free Unlimited Support Via GotoMeeting and/or telephone

Technical Specifications

Recording Format Linear PCM(WAV)/MP3
Recording Media Built-in 4GB Flash Memory Removable Media SD (SDHC) Card (up to 32GB)
Frequency characteristics (Internal Microphone) 20Hz~20kHz (Center Mic ON)
60Hz~20kHz (Center Mic OFF)
Card Format SD, SDHC
PC Interface USB
Speaker Built-in ø28 mm round dynamic speaker
Microphone Jack φ3.5mm, impedance approx. 2kΩ
Earphone Jack φ3.5mm impedance 8Ω or more
Line in Jack φ3.5mm, impedance approx. 10kΩ
Power Supply 2 x AA Alkaline Batteries
Tresmic Yes
Smart mode Yes
Mode select dial Yes
Pre-recording function Yes
Over Dubbing function Yes
Metronome function Yes
Tuner function Yes
Lowcut Filter Yes (100Hz/300Hz)
Voice Guidance Yes
Size 5.46" x 2.07" x .90"
Weight 5.82 ozs
OS Supported "Microsoft Windows XP/ Vista/7/8
Mac OS X 10.4.11~10.8" including Yosemite


Product Videos

LS-14 Overview Video (03:03)
This animated video introduces you to our newest entry to the LS family of recorders, the Olympus LS-14. Check out a quick overview of new features, recorder applications and some of the cool accessories which make the LS-14 a musician's best friend.
  • LS-14 Overview Video
    This animated video introduces you to our newest entry to the ...
  • Olympus LS-14 Linear PCM Recorder
  • Olympus LS-14 Linear PCM Recorder Sideview

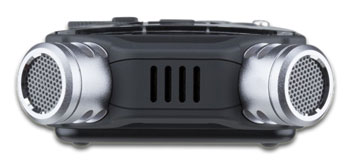

  • Olympus LS-14 Linear PCM Recorder Top
