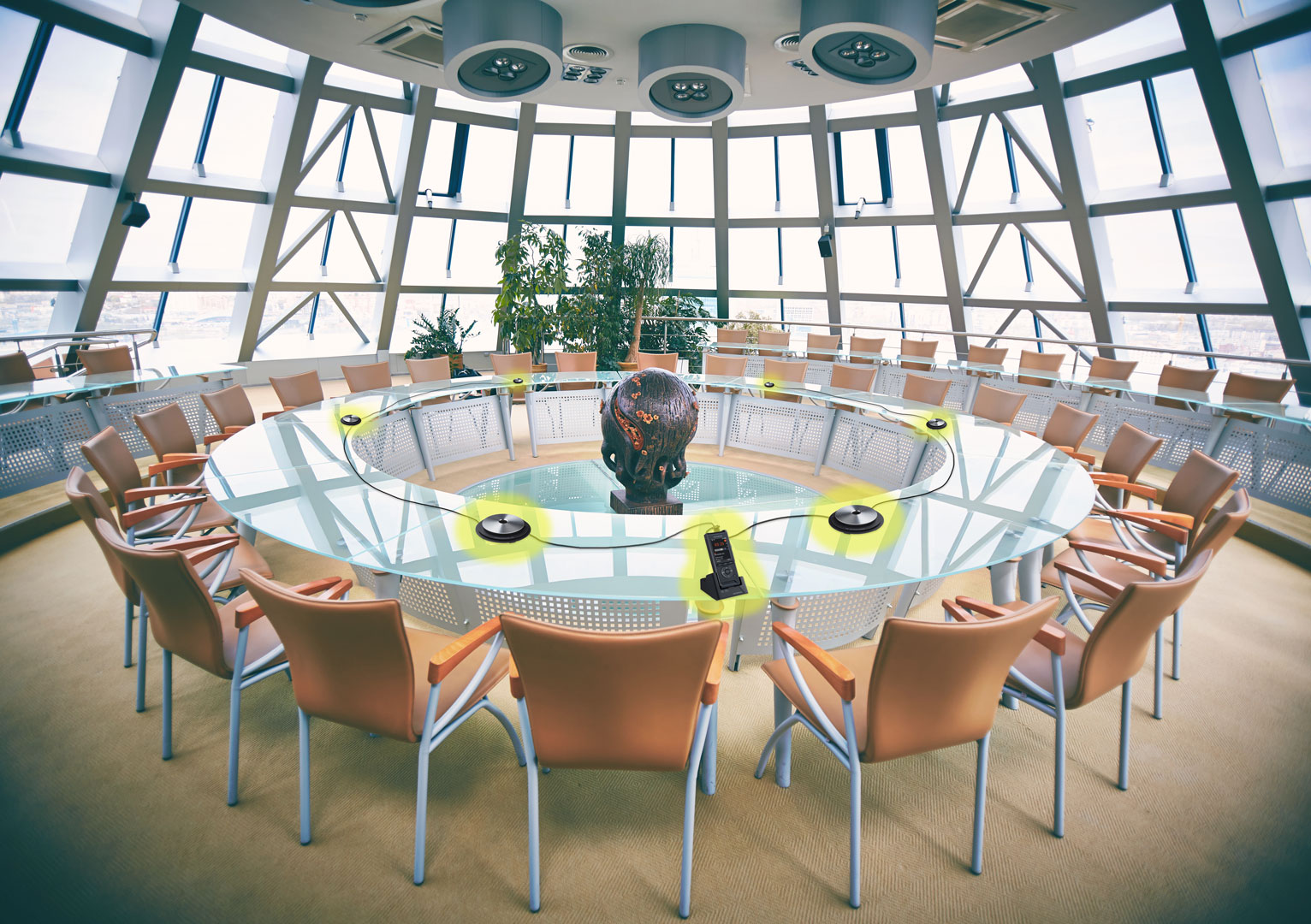

Simulated Example of Conference Room Kit layout. Click to enlarge.
When making records of critical meetings and conference is paramount to your business, the best choice is the this professional digital recording kit. It features the reliable, durable, and secure Olympus® DS-9500 and six Olympus ME33 omni-directional conference microphones. This conference room microphone system is easily transported in the protective Olympus Canvas Travel Carrying Case.
Olympus DS-9500. Click to enlarge.
The rugged Olympus DS-9500 Professional Dictation Recorder includes the newest technology and is manufactured for superior speech-optimized audio recordings in practically any environment. This Olympus conference room microphone system is a premium recording device that is provides flexible recording modes that let you choose between dictation or conference recording so that you can be sure to capture what is most important. Recordings can be stored in DSS Pro, DSS, MP3, and WAV formats for easy sharing and transportation. (Click here to learn more about the DS-9500.)
Plus it is equipped with 128-bit and 256-bit encryption for security. Perfect for hospital, law, and government application.
The DS-9500 has been rated by Nuance® as 6 out of 6-Star Accuracy Score for use with their Dragon® Speech Recognition software (like Nuance Dragon Professional Group 15). It does come with the Olympus Dictation Software (ODMS) which is the industry leading workflow management software that works effortlessly with Dragon. The ODMS allows for efficient routing of files within your organization over FTP, servers, or email. (Learn more about the ODMS by clicking here.)

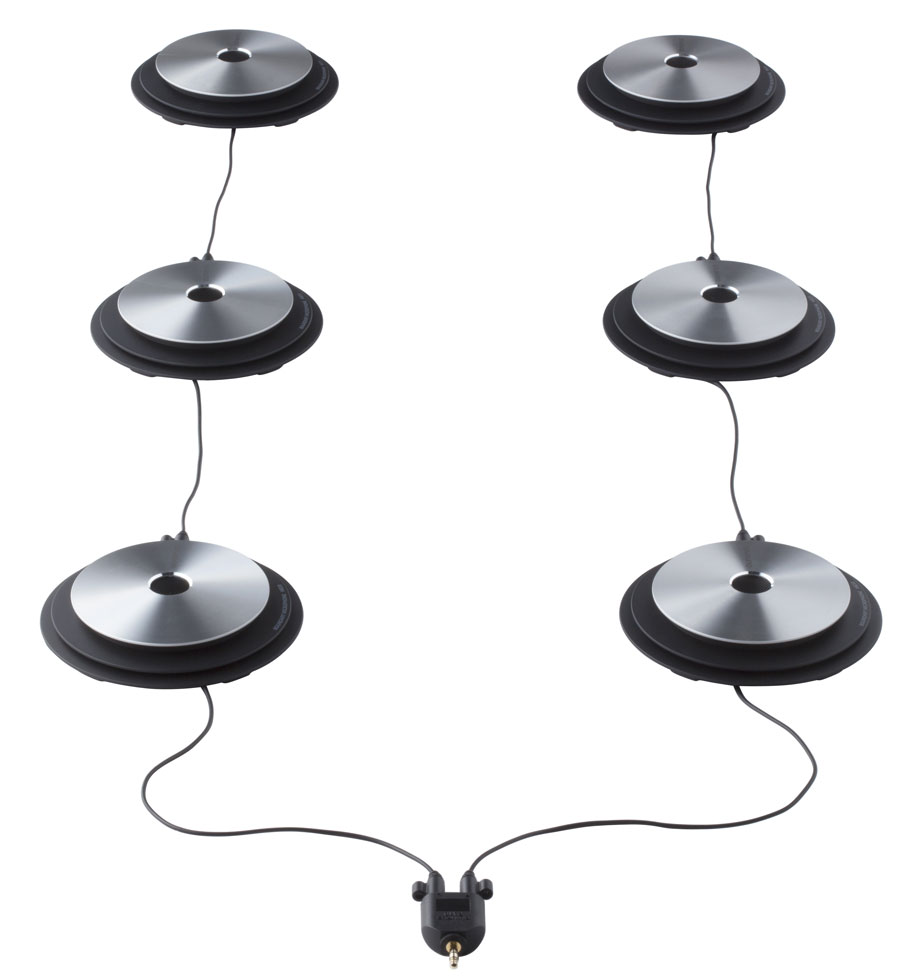

Six Olympus ME33 Microphones and Left/Right Splitter. Click to enlarge.
The ME33 boundary microphones ensure that you capture every word spoken around them for later play back. They are the next generation of omni-directions microphones from Olympus which are designed to capture voices from a distance making them ideal for conference rooms, class rooms, and any large room environment. Built into each conference mic is the ability to eliminate excess high-frequency and low-frequency noises.
Modular
The beauty of the ME33 is the ability to combine up to six microphones together for stereo recording in a large room. But if the situation doesn't call for all six then you can scale that back. Each wireless conference microphone system can be connected or disconnected as needed.
| Recording format | DS2, MP3 and WAV - Digital recording in accordance Digital Speech Standard Pro |
| Recording Media | Micro-SD, SD, SDHC up to 32 GB |
| Recorder Lock Function | 4-digit PIN |
| Input level | -70 dB |
| Display | Color LCD, TFT, 65,000 colors, 2" diagonal measurement, back-lit |
| Recording indicator | Red LED and VU bar-graph display on main color menu |
| Folders/Messages | 5 folders with up to 200 files per folder. When using ODMS Software, up to 7 folders with 200 files per folder can be created. |
| Sampling Frequency | QP Mode: 16 KHz (28 kbps data rate); SP Mode: 12 KHz |
| Overall Frequency Response | SP mode: 200 to 5,000 Hz; QP mode: 200 to 7,000 Hz |
| Voice Activation | Yes (VCVA) |
| Mic sensitivity modes | Dictation and conference |
| Write Protection | Yes |
| Power Save Mode | Yes |
| Language support | English, French, Spanish |
| Microphone jack | 3.5mm mini-jack |
| Earphone jack | 3.5mm mini-jack |
| Battery | Lithium-ion, Olympus LI-42B, 3.7V, 420 mAh |
| AC Adapter | Does not come with power adapter. Optional Olympus A-517, 5vdc, 1 Amp is available for purchase. |
| USB Port | Mini, USB 2.0 compliant |
| Recording Times | |||||
|---|---|---|---|---|---|
| Memory Size | DS2 (Standard Play) | DS2 (Quality Play) | WAV (44.1 kHz/16 bit Linear PCM) | MP3 (256 kbps) | MP3 (128 kbps) |
| 2 GB Micro-SD (included) | 306 hrs. | 149 hrs | 3 hrs | 16.5 hrs | 33 hrs |
| With 8 GB External SD card (not included) | 1,237 hrs. | 604 hrs. | 12 hrs. | 66.5 hrs. | 133 hrs. |
| Type | Electret Condenser |
| Directional characteristic | Omnidirectional |
| Frequency characteristic | 70 to 10,000 Hz |
| Sensitivity | -35dB at 1kHz 0dB=1V/Pa |
| Output impedance | 2.2 kΩ |
| Plug-in power | (1.5 to 10 V) |
| Cord length | 2m Plug: 3.2mm diameter, 3-pole mini-plug (monaural) |
| Jack | 3.2mm diameter, 3-pole mini-plug (monaural) |
| Outer dimensions | 120mm diameter×23mm (without protrusions) |
| Weight | 110g approx |
| Accessories | Adapter (PA10) |
(same day shipping for all orders placed by 3:30 p.m. EDT)
Package Includes:
PLUS:
2 Year Warranty on DS-9500
The Olympus DS-9500 is guaranteed against defects in material or manufacture for a period of 2 years from the date of original purchase.
$1,029.00
